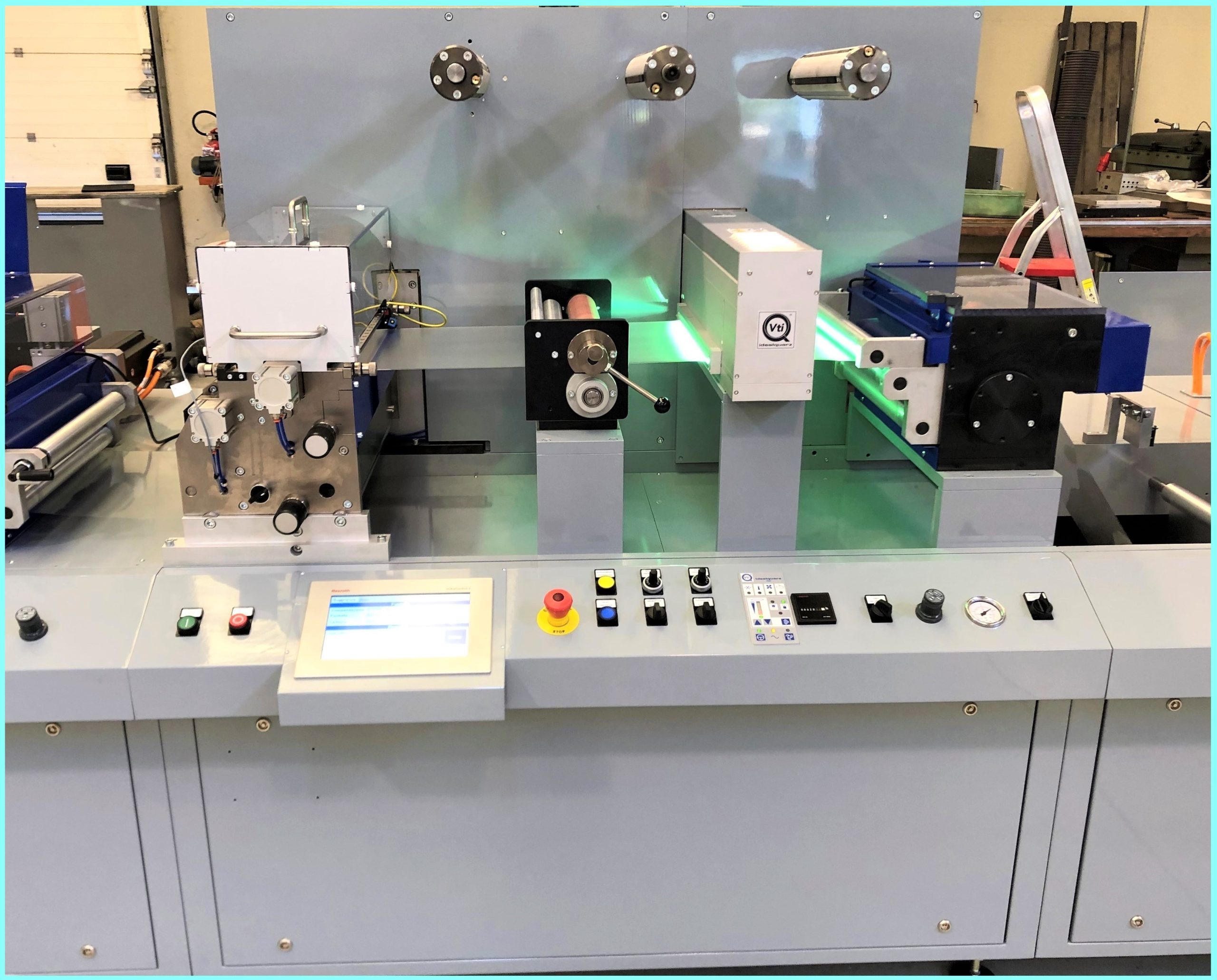

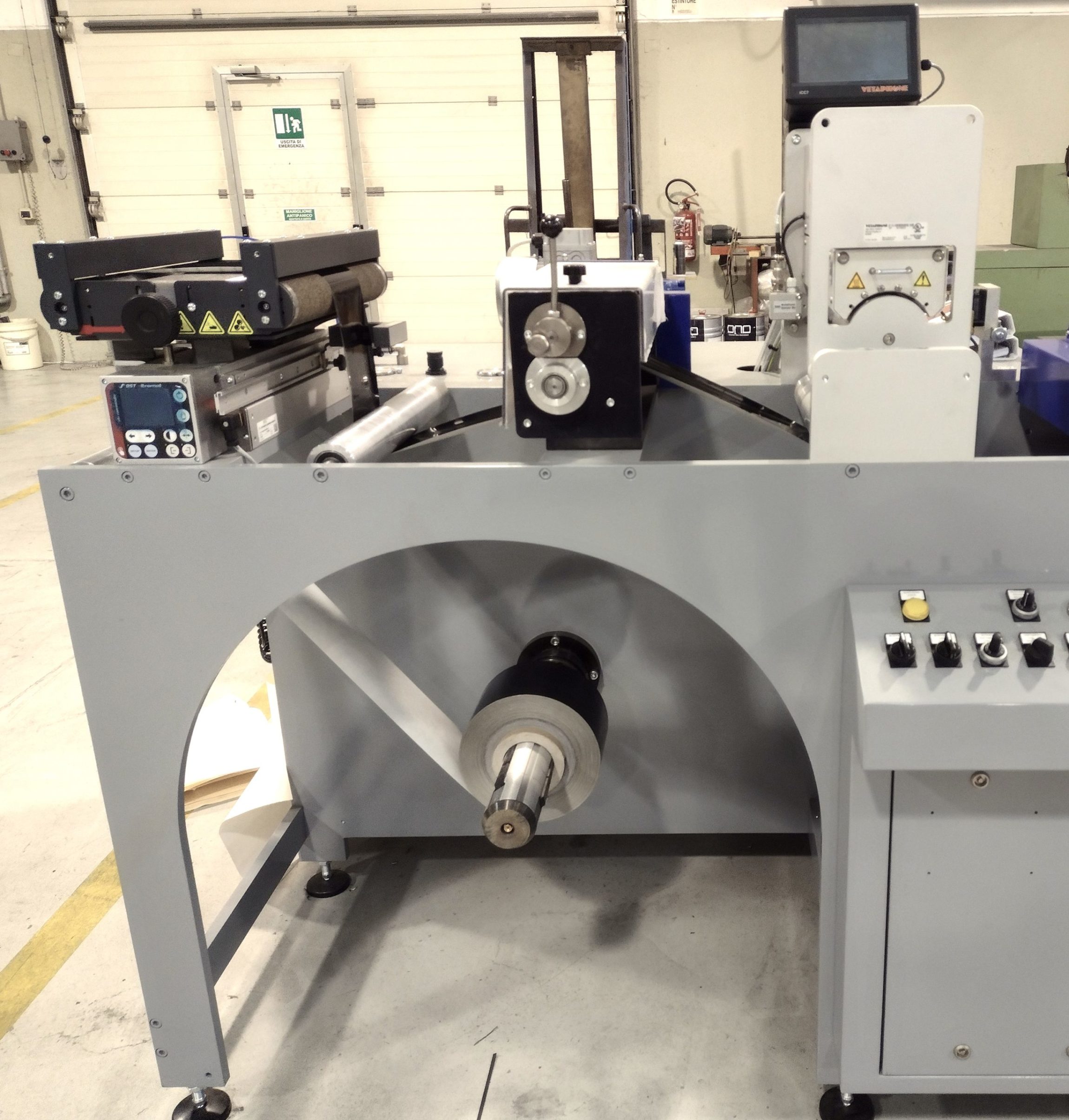

Bst band guide unwinder with automatic material self-centering system. Equipped with a multifunctional Flexo printing unit for 4 different applications: single-color printing; continuous varnishing over the entire surface; partial drip-off varnishing of individual areas and glue spreading via anilox roller for lamination and/or cold foil lamination.

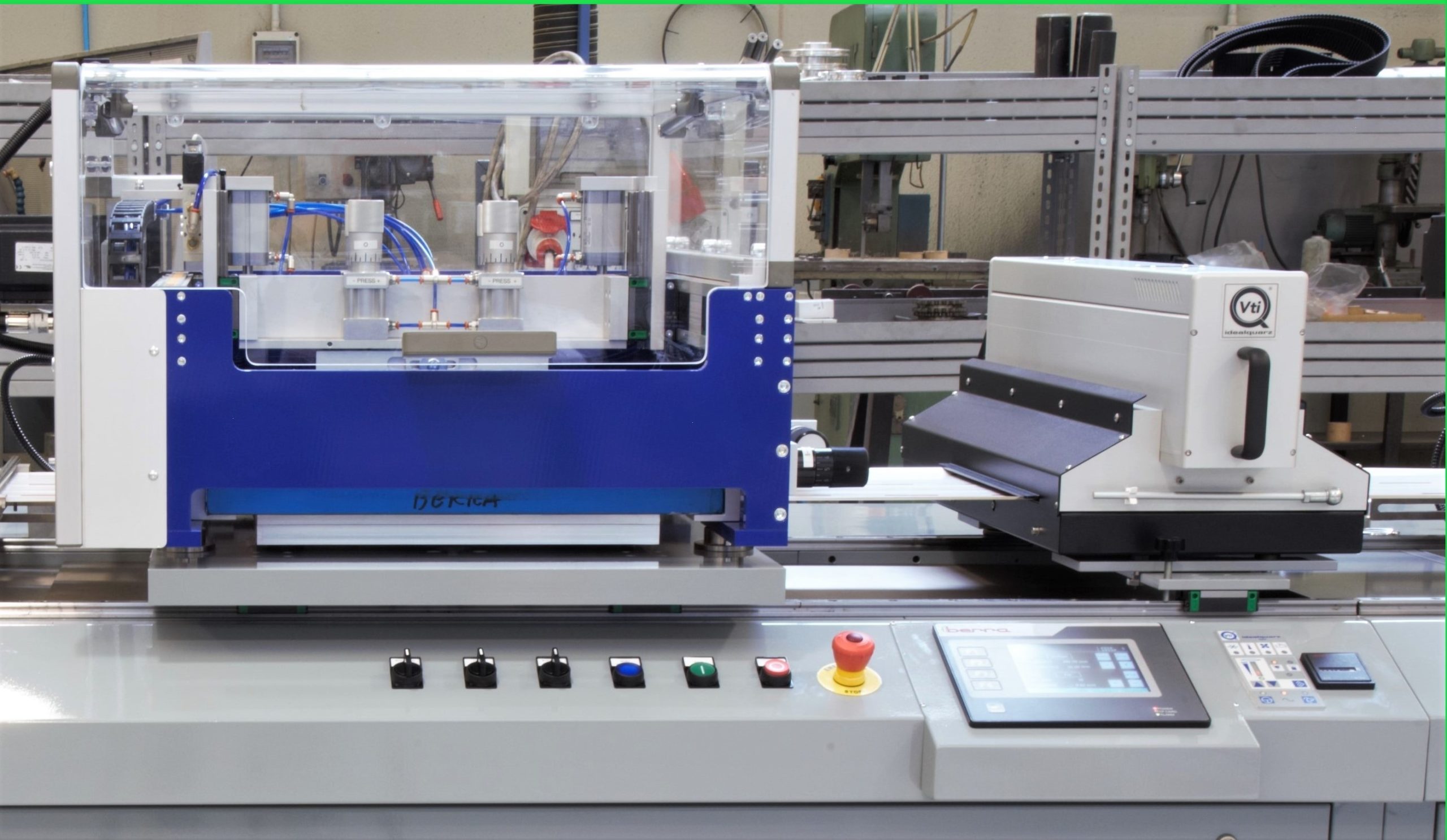

Capble of supporting up to 6 modular silk-screen printing units that can be equipped with “Autoregister new 2025″ with latest-generation Bosch/Rexroth management software.

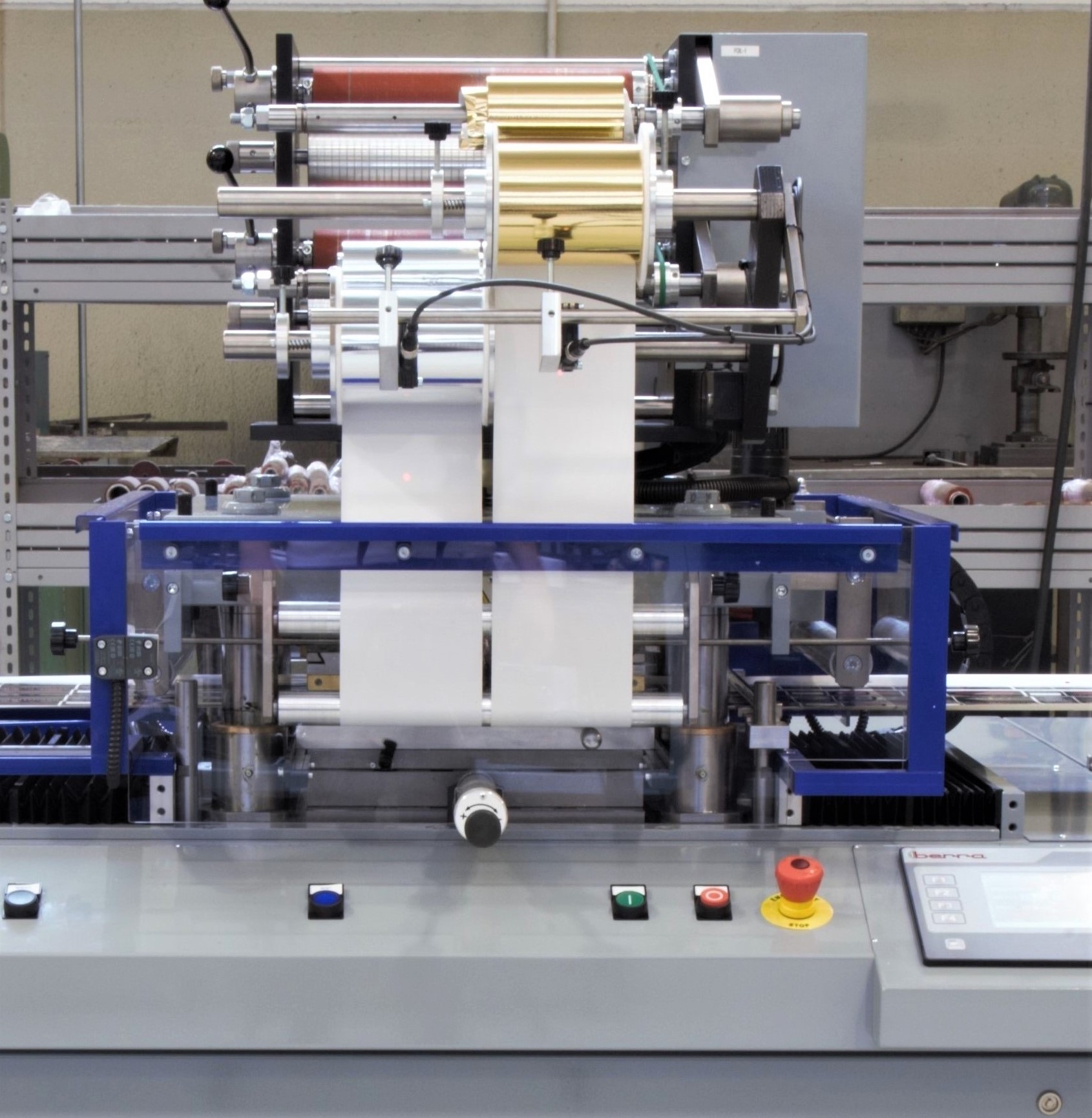

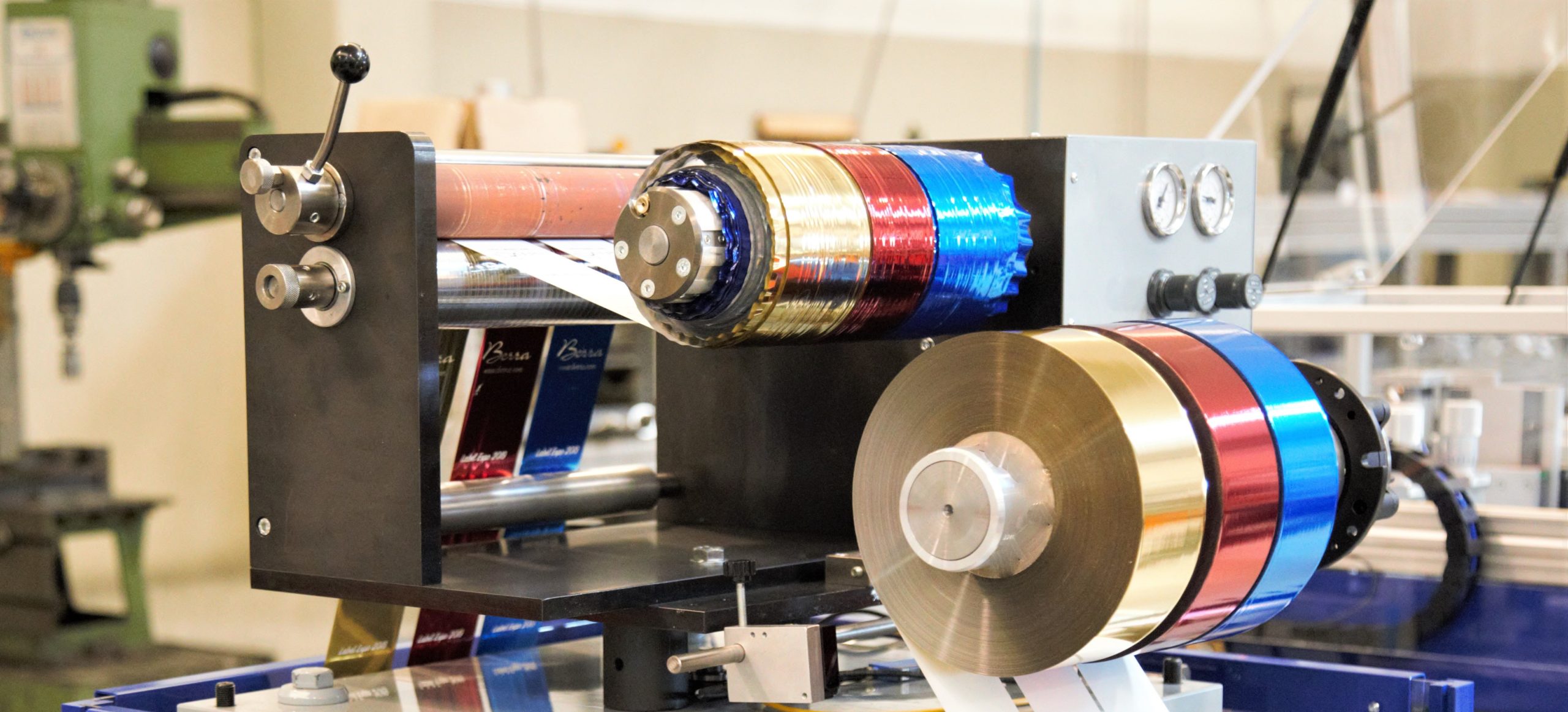

Modular hot stamping unit “Autoregister new 2025″ with latest-generation Bosch/Rexroth management software. Flat and semi-rotary version with Gap master.
Brushless motors on the entire line.

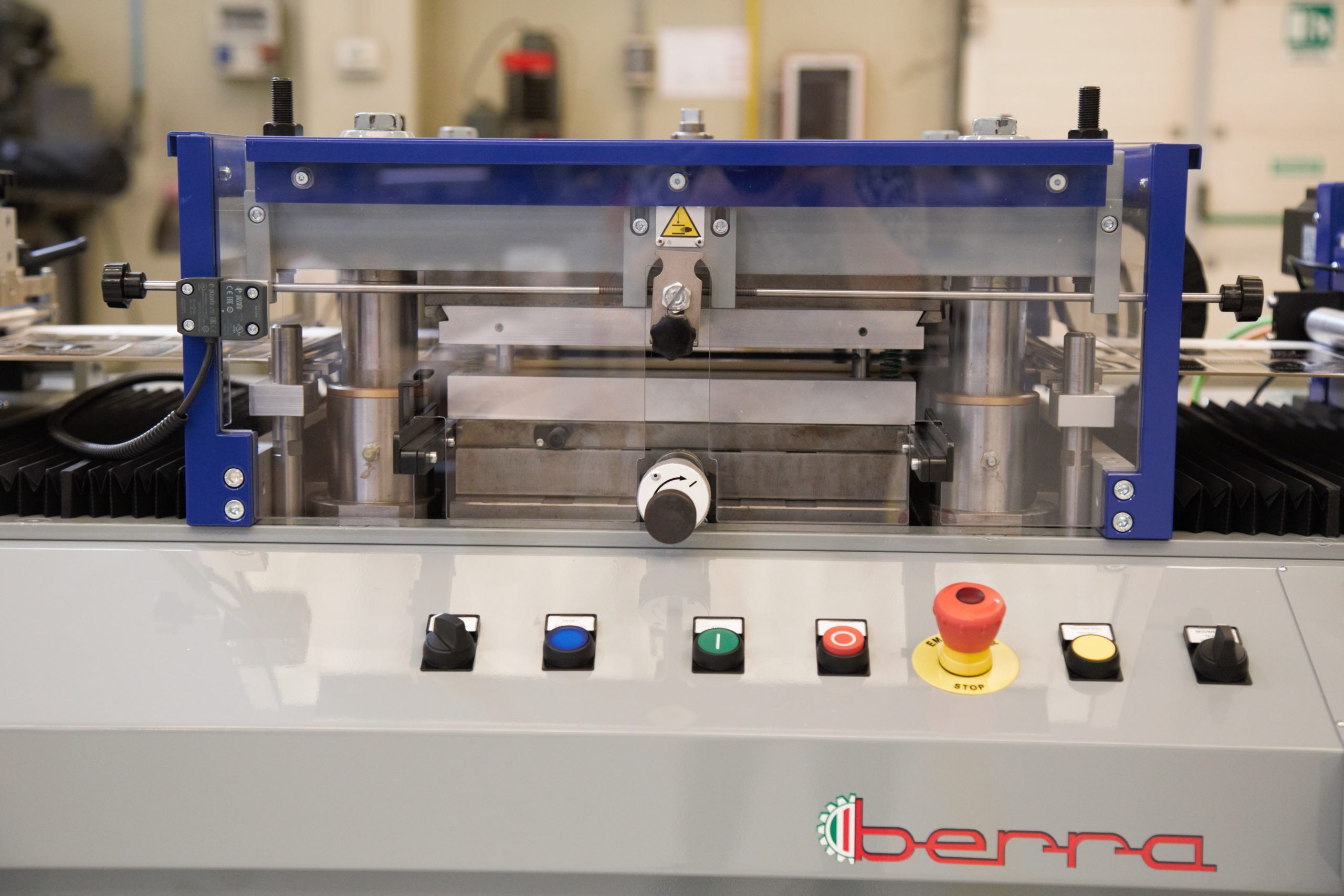

Modular flat die-cutting unit equipped with motorized ball screw for mechanical relief printing and debossing.

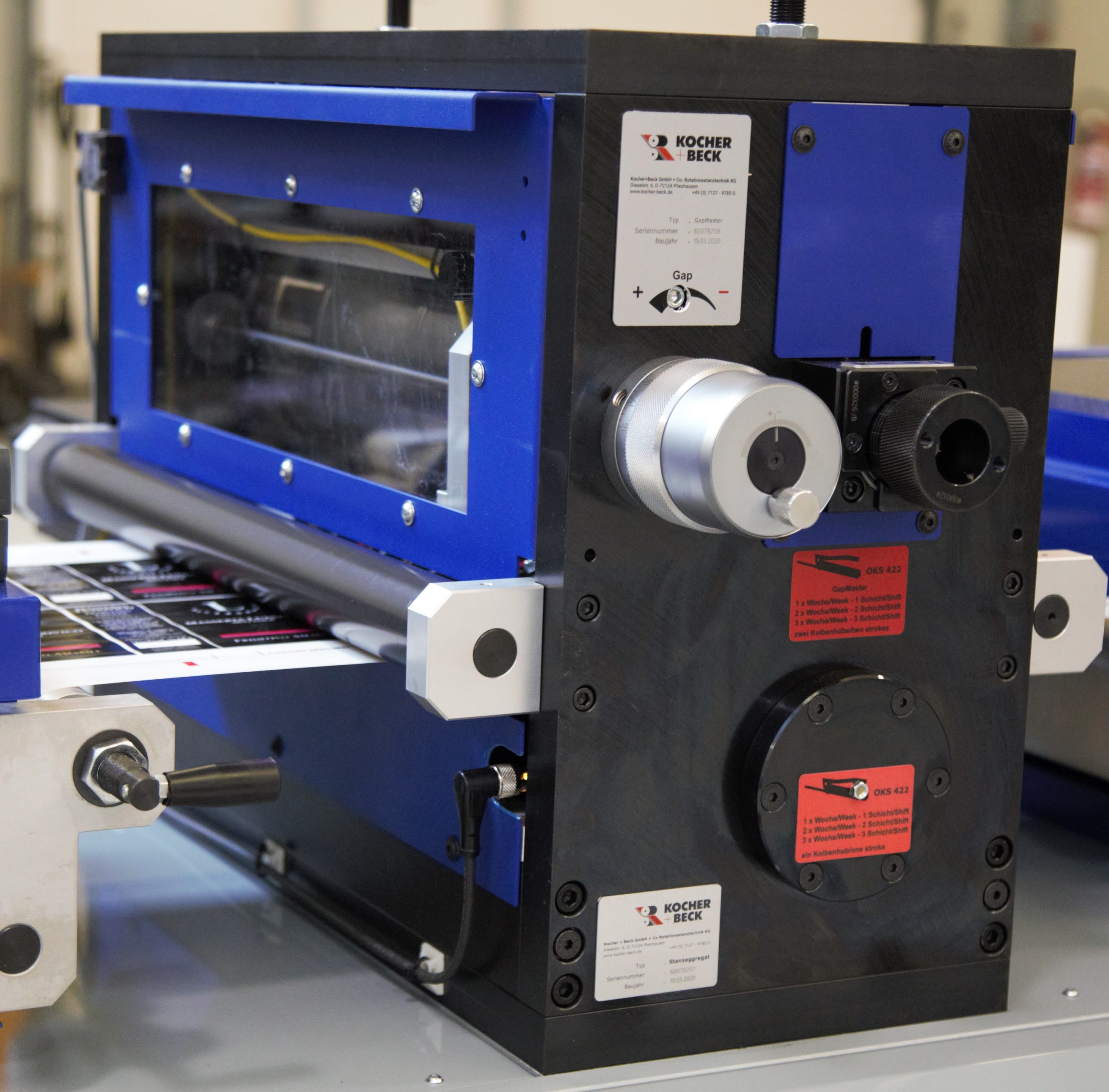

Kocher+beck modular semi-rotary die-cutting unit with latest generation Bosch/Rexroth management software and the possibility of using all “Z” sizes of flexible dies.
The reel is completely finished in the machine.

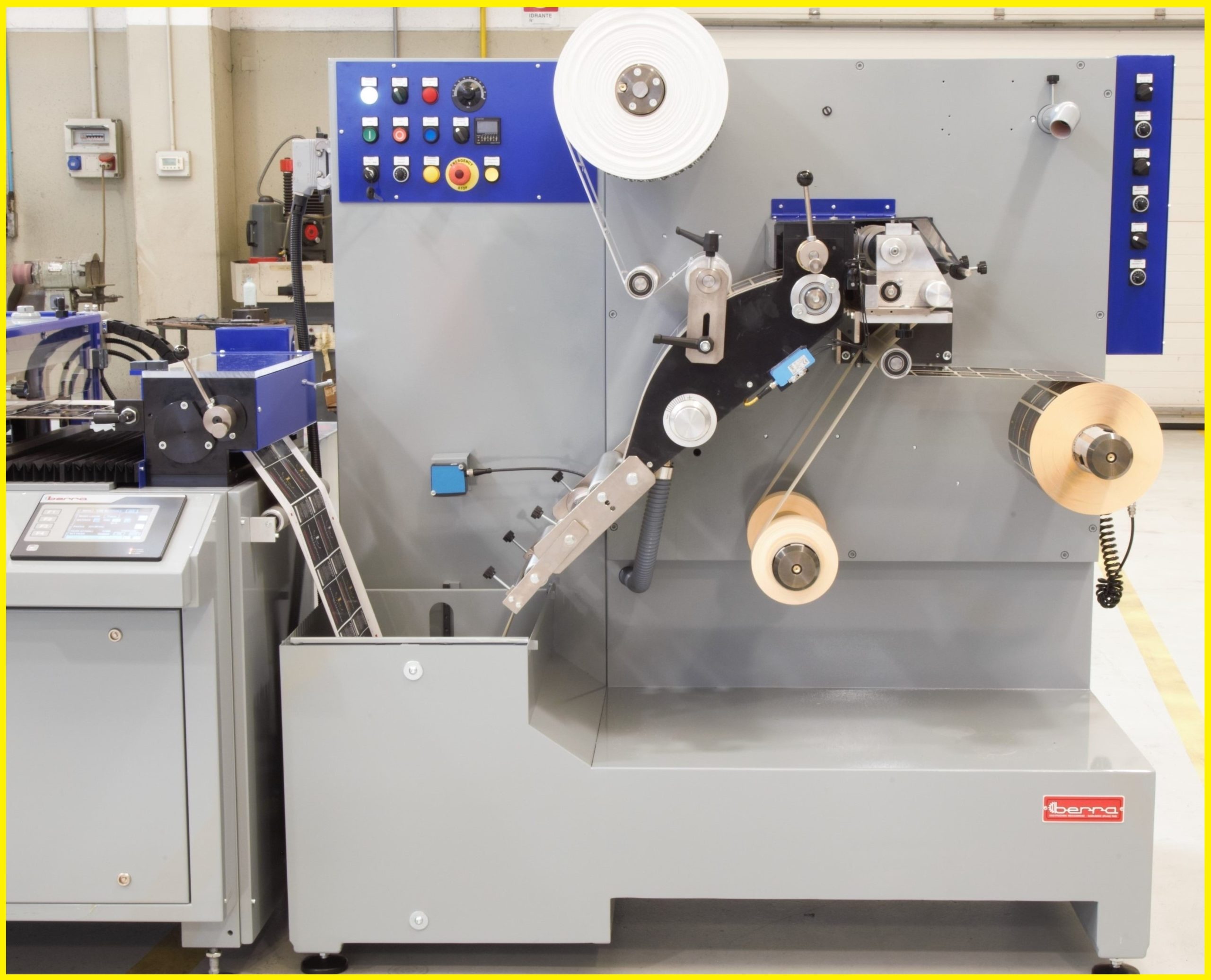

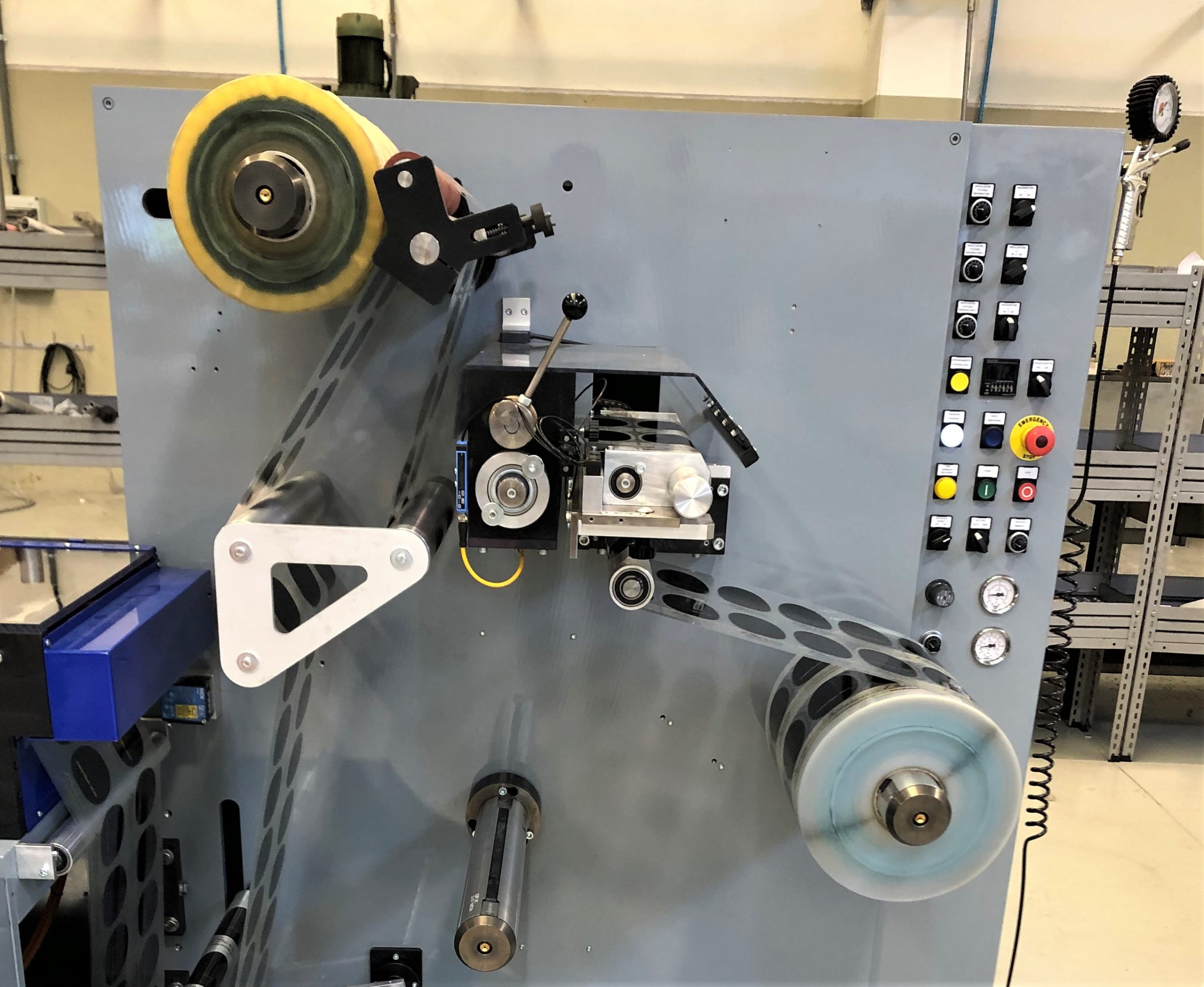

New “Easy Liner New 2025” unwinding/rewinding unit with speed variation.
Max. diameter of reels on the unwinder | mm 800 |
Max. diameter of rewound spools | mm 600 |
Material feeding gap | mm 340 |
Length of single modules | mm 1.500/2.000 |
Printing size | mm 310 x 280 |
Machine depth | mm 1.500 |
Remote Service | Standard |
Flat Screen Printing Unit speed | Up to 5,000 cycles/hour |
Hot Foil Printing Unit speed | Up to 7,000 cycles/hour |
Flexo Unit and Semi-Rotary Die Cutting speed | Up to 10,000 cycles/hour |
